Magnetic level indicator MKL
Code: MKL3V4ADN(151/201/251)A0
The MKL level indicator shall be connected by two attachments to the tank (see examples of attachments). The float compartment level corresponds to the level in the tank.
The float features a special round magnet rotating 180 ˚ around its axis along aluminium sections. The level is easy to read on the red–coloured sections of the second half.
The MKL level indicator is for medium density fluids requiring precise indication and control. Applicable in particular to corrosive, toxic and flammable solutions.
The MKL level indicator is easy to use, no feeding required and safe in operation. It is made of stainless steel, PVC, PP or PVDF. The indication lines and sections consist of aluminium and therefore do not submit to corrosion. Each section contains magnetic parts, so vibration does not interfere with determining the exact level.
Contact switches can be added to the operating area of any float. This makes it easier to determine the min–max value.
Specification
| Attachment | Flange from DN15 |
| Material | Stainless steel, PVC, PPH, PVDF |
| Flange material | Stainless steel 1.467, C 22.8 |
| Operating temperature | PTFE seal max. 150 ˚ C |
| Stainless steel | clingerith seal Max 200 ˚ C |
| PVC | max. 60˚C |
| PPH | max. 90˚C |
| PVDF | max. 130˚C |
| Stainless steel float (weight, dimensions, operating pressure, environmental density) | ~300g, ø52x270, 16bar, ρ≥0,70g/cm³ ~320g, ø52x270, 40bar, ρ≥0,75g/cm³ |
| Titanium float (weight, dimensions, operating pressure, environmental density) | ~180g, ø52x150, 16/40bar, ρ≥0,73g/cm³ |
| PVC float (weight, dimensions, operating pressure, environmental density) | ~331g, ø52x250, 6bar, ρ≥0,08g/cm³ |
| PPH pludiņš (svars, izmēri, darbības spiediens, vides blīvums) | ~283g, ø52x250, 6bar, ρ≥0,69g/cm³ |
| PVDF (weight, dimensions, operating pressure, environmental density) | ~352g, ø52x250, 6bar, ρ≥0,85g/cm³ |
| Number of contact switches | As needed |
| contact voltage | max.10VA, max.230V AC |
| Length of indicator | max.6m |

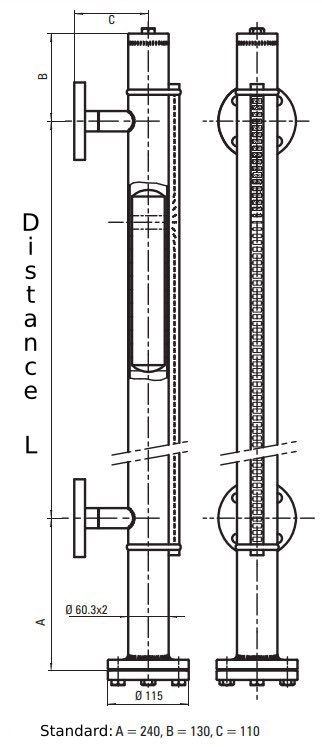

Technical drawing
Magnetic level indicator MKL
Code: MKL3V4ADN(151/201/251)A0
