Bistable contact switch for level indicators MKL
Code: BK-380-63
Switch BK–380 is a magnetically operated contact switch that changes its position depending on the interaction of the magnetic system.
BK–380 is suitable for MKL level indicators operating on another magnetic system. The contact switch housing is made of polycarbonate and provides a level of protection for IP 65.
Specification
| Protection class EN 60529 | IP65 |
| Hull material | Polycarbonate |
| Fastening clamping material | V2A, cable clamp (PP) |
| Riveting material | V2A |
| Screw fastening material | M20x1.5, polyamide |
| Operating temperature | –20...+70 °C |
| Maximum cross section of the protective conductor | 1,5mm² |
| Distance of switching points | min. 40mm |
| Switching hysteresis | ~.10-15mm |
| Weight | 140g |

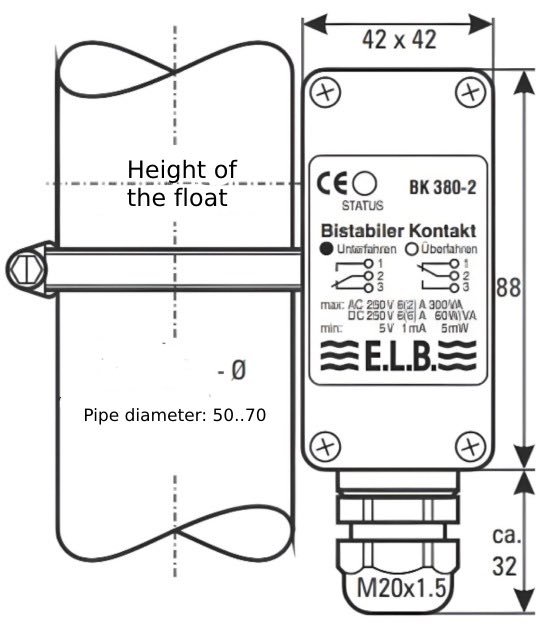

Technical drawing
Bistable contact switch for level indicators MKL
Code: BK-380-63
